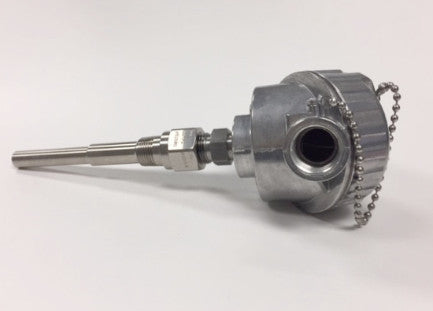

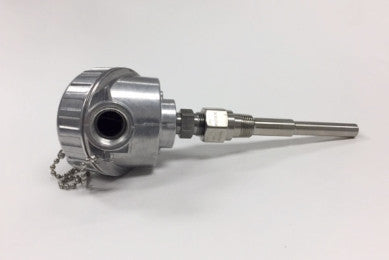

Siemens: QAE2012.9002 Immersion Well Temperature Sensor

SENSING ELEM.-50/600F 1000 OHM

Features:

• Sensing Element:                 Platinum 1000 Ohm, 2-wire
• Operating Temperature:       -50 to 900 °F [-46 to 482 °C]
• Accuracy:                             ± [0.54 + (0.005 x |T - 32|)]
• Process Connection:           1/2” NPT on Thermowell
• Thermowell:                          4” insertion, Stainless Steel
• Weather Head:                     Aluminum, 3/4” NPT
• Primary Use:                        Water/Steam Temp. Sensor for LMV5/ RWF10/ RWF40 /RWF50 /RWF55
